bơm hóa chất & bơm dầu đốt 2CY-1.08/2.5,bơm bánh răng hóa chất sơn,bơm nhựa đường, bơm dầu nóng 2CY-2.1/2.5, 2CY-3/2.5, 2CY-4.2/2.5, 2CY-7.5/2.5, 2CY-12/2.5

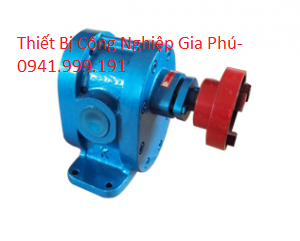

2CY series gear pump 2CY series stainless steel gear pump is mainly used for a variety of mechanical equipment lubrication systems transport oil, suitable for conveying a viscosity of 5 × 10-6 ~ 1.5 × 10-3m2 / s (5-1500cSt), the temperature below 300 ℃ the lubricating properties of the oil. Stainless steel gear pump, can transport non-lubricating of oil, beverages, low corrosive liquids. Equipped with copper gear can deliver low interior point liquid such as gasoline, benzene. This series of pumps In addition to configuring the ordinary motor, it can also be configured with the specifications of explosion-proof motor according to the user.
2CY gear pump range of applications 2CY series gear pump can be used in the oil transfer system, booster pump in the fuel system can be used as transmission, compression, fuel injection pump in the hydraulic system can be used to provide hydraulic power hydraulic pump 2CY series gear pump in all industrial areas, are available for lubricating oil pump.
structural features 2CY series pumps are gear, shaft, pump, pump cover, bearing housing, shaft seals and other components. 2CY gear pump gear after nitriding treatment with high hardness and wear resistance. 2CY gear pump is installed along with the shaft running in a replaceable bushings. 2CY internal gear pump all the parts are lubricated by the conveying medium automatically when the pump is working to achieve. Pump four bearing float mounted in the pump set to automatically adjust the end clearance with the size of the working pressure, so 2CY gear pump pressure is stable, low output flow pulsation, high volumetric efficiency solution. Overhang from the spindle end to the pump to see, for the clockwise rotation.
Ứng dụng của bơm dầu đốt & bơm hóa chất
Dầu: dầu FO, DO, dầu biến thế, dầu bôi trơn…
Dung dịch: Cồn, Benzen, chất thơm, Ete, Xeton, dầu mỏ
